Aluminium Alloy Sheet
>
|
| Place of Origin | China |
| Brand Name | Aluminum Corporation of China |
| Model Number | 1000，2000，3000，4000，5000，6000，7000 |

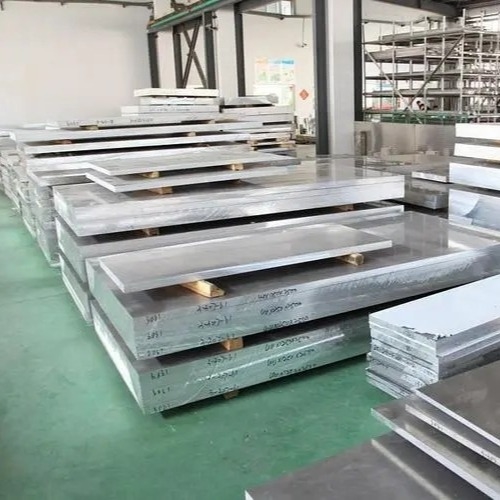

Anodized Aluminium Alloy Flat Sheet 3003 5052 H14 2mm Thick 99.5% Purity
Aluminium Alloy Sheet is a type of metal material made of aluminium alloy with a yield strength of ≥110Mpa, hardness of ≤95HB, and density of 2.7g/cm3. It excels in corrosion resistance and comes with a wide range of surface treatments, including mill finish, anodized, brushed, etc. It is widely used for Aluminium Alloy Flat Sheet, Aluminium Alloy Sheet Coil and Aluminium Alloy Plate in many industries due to its excellent corrosion resistance, durability and workability.
|
|
|
|
|
Specification of Aluminium Sheet
|
||||
|
Alloy No.
|
Thickness(mm)
|
Width(mm)
|
Temper
|
|
|
|
||||
|
A1050,A1060, A1070,A1100,A1235,A1245
|
0.2-3.0
|
20-1900
|
O,H12,H22,H14,H24,H16,H26,H18
|
|
|
4.0-12.0
|
1000-1900
|
H111,H112
|
||
|
A3003,A3004,A3105
|
0.2-4.0
|
20-1900
|
O,H12,H22,H14,H24,H16,H26,H18
|
|
|
4.0-12.0
|
1000-1900
|
H111,H112
|
||
|
A5052,A5083,A5754,A5005
|
0.2-4.0
|
20-1900
|
O,H12,H22,H14,H24,H16,H26,H18
|
|
|
4.0-12.0
|
1000-1900
|
H111,H112
|
||
|
A6061,A6082,A6063
|
0.8-3.0
|
20-1900
|
O
|
|
|
A8011,A1145,A1235
|
0.005-0.2
|
20-1700
|
O,,H18,H24
|
|
|
ID
|
76mm,152mm,200mm,300mm,505mm
|
|||
|
Packing : Export wooden pallets, wooden case
|
||||
|
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
|
||||
|
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage,
camber, dents, holes, break lines, scratches and free from coil set |
||||
|
MOQ
|
4 tons
|
|||
|
Payment term:
|
TT,L/C,D/P, West Union
|
|||
|
Delivery Time
|
Future goods:20-30 Work days,Ready Stock:7-10 days.
|
|||
|
Kind attention : Specifications can be customized as the customer's requirements.
|
||||
Aluminium Alloy Sheet is a high-quality product manufactured by Aluminum Corporation of China in various models, such as 1000, 2000, 3000, 4000, 5000, 6000 and 7000. It is known for its excellent corrosion resistance and purity, ranging from 99.5%, 99.95% to 99.99%, making it an ideal choice for many applications. It is also known for its strength and durability, and its density is 2.7g/cm3. Aluminium Alloy Sheet has a wide range of applications, as it is available in different widths, ranging from 1000 to 2000mm. Moreover, it is available in a variety of surface treatments, such as mill finish, anodized, brushed, etc. Aluminium Alloy Sheet is widely used in the manufacturing of aircraft, automobiles, ships, and electronic equipment. It is also widely used in the construction industry, as it is an excellent choice for roofing, wall cladding, and other applications. Furthermore, Aluminium Alloy Sheet is widely used in the production of various industrial products, such as electrical enclosures, machine parts, and heat exchangers.
Aluminium Alloy Sheet is an excellent choice for many industries due to its strength, durability, and corrosion resistance. It is highly sought after due to its excellent performance and low cost of production. As such, Aluminium Alloy Sheet is widely used in the manufacturing of various products, from aircraft and automobiles to electronic equipment and industrial products. It is also used in the construction industry, as it is an excellent choice for roofing, wall cladding, and other applications. Moreover, Aluminium Alloy Sheet is widely used in the production of various industrial products, such as electrical enclosures, machine parts, and heat exchangers. As a result, Aluminium Alloy Sheet is a popular choice for manufacturers and suppliers due to its wide range of applications, as well as its excellent performance and low cost of production.
|
Standard
|
JIS G3141,DIN1623,EN10130
|
|
|
Thickness
|
0.15-6.0mm(Aluminum sheet) 6.0-25.0mm(Aluminum plate)
|
|
|
Temper
|
O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
|
|
|
Surface Treatment
|
Mill Finished, Anodized, Embossed, PVC Coated etc
|
|
|
Alloy
|
Application field
|
|
|
1xxx
|
1050
|
Insulation, food industry, decoration, lamp, traffic signs etc.
|
|
1060
|
Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
|
|
|
1070
|
Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
|
|
|
1100
|
Cooker, building material, printing, heat exchanger, bottle cap etc
|
|
|
2xxx
|
2A12
2024
|
Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.
|
|
3xxx
|
3003 3004
3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.
|
|
5xxx
|
5052
|
Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc.
|
|
5005
|
Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
|
|
|
5086
|
Ship board, deck, bottom and edge panel etc.
|
|
|
5083
|
Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc.
|
|
|
5182
|
||
|
5454
|
||
|
5754
|
Tanker body, marine facilities, pressure container, transportation etc.
|
|
|
6xxx
|
6061
6083 6082 |
Railway inside and outside parts, board and bed plate. Industry molding
Highly stressed applications includes Roofing construction,transportation, and marine as well as mould. |
|
|
Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
|
|
|
7xxx
|
7005
|
Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
|
|
7050
|
Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment.
|
|
|
7075
|
Aerospace industry, military industry, electronic etc.
|
|
Aluminium Alloy Sheet Technical Support and Service:
Packaging and Shipping for Aluminium Alloy Sheet:
Aluminium alloy sheet products are packaged in bundles and secured tightly with steel straps or shrink wrap, and shipped to the customers in a e manner. To ensure the ety of the products, they are also placed in protective packaging, such as cardboard boxes or plastic bags.
