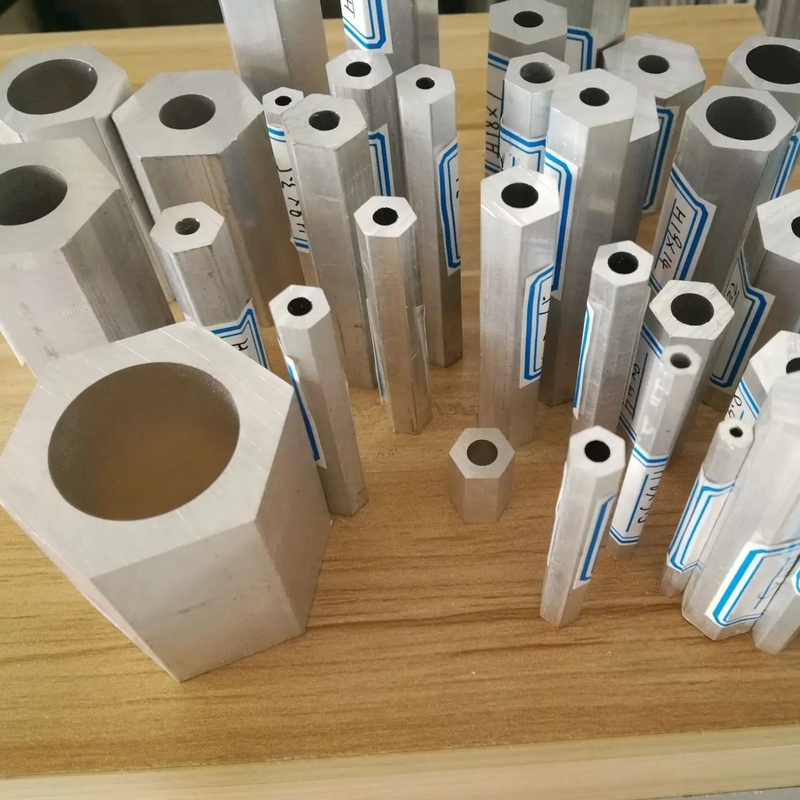

Hexagonal Aluminum Profile Tube 6063-T5 95% Pure Cutting Alloy Pipe 5800 Length
The chemical composition of 6063 aluminum alloy becomes the most important link in the production of high-quality aluminum alloy construction profiles.
Influence of performance
6063 aluminum alloy is a heat treatable reinforced alloy with medium strength in AL-Mg-Si system, Mg and Si are the main alloying elements.
The higher the content of Mg, the greater the number of Mg2Si, the greater the heat treatment strengthening effect, the higher the tensile strength of the profile, but the deformation resistance also increases, the plasticity of the alloy decreases, the processing performance becomes worse, and the corrosion resistance becomes worse.
1. The role and influence of 2Si The amount of Si should enable all the Mg in the alloy to exist in the form of Mg2Si phase to ensure that the role of Mg is fully played. As the Si content increases, the grain of the alloy becomes finer, the mobility of the metal increases, the casting performance becomes better, the heat treatment strengthening effect increases, the tensile strength of the profile increases while the plasticity decreases, and the corrosion resistance becomes worse.
|
Item
|
Aluminium pipe/pipes Aluminium Tube/Tubes/tubing
|
|
Material
|
Aluminium
|
|
Grade |
1000 series: 1050,1060,1070,1080,1100,1435, etc
2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc |
|
standards
|
ASTM, ASME,EN, JIS, DIN,GB/T etc
|
|
Size |
Outer Diameter:3-250mm
|
|
Wall Thickness: 0.3-50mm
|
|
|
Length: 10mm -6000mm
|
|
|
Surface treatment |
Mill finish
Anodized Electrophoresis Powder coating Wooden grain Sand blast |
|
Surface colors
|
Nature, silver, bronze, champagne, black, gloden, etc
As customized |
|
Temper
|
T3-T8
|
|
Moulding/Pattern |
1. Using our moulds, no fee
2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free. 3. Can be diguessed. |
|
Application |
1. Lighting,solar reflector plate.
2.architectural appearance, interior decoration:ceiling,metope, furniture,cabinets and so on. 3.elevator,nameplate, bags. 4.automotive interior and exterior decoration. 5. Interior decoration: such as photo frame. 6.household appliances, refrigerator, microwave oven, audio equipment. 7. Aerospace and military aspects. 8, machinery parts processing, mold manufacturing . 9. chemical/insulation pipeline coating. |
Chemical Composition
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Zr
|
|
Impurity
|
Al
|
2014
|
0.5-1.2
|
0.7
|
3.9-5.0
|
0.4-1.2
|
0.2-0.8
|
0.1
|
0.25
|
|
0.15
|
-
|
0.15
|
Rest
|
2017
|
0.2-0.8
|
0.7
|
3.5-4.5
|
0.4-1.0
|
0.4-0.8
|
|
0.1
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
2024
|
0.5
|
0.5
|
3.8-4.9
|
|
0.3-0.9
|
1.2-1.8
|
0.1
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
5052
|
0.25
|
|
0.4
|
0.1
|
0.1
|
2.2-2.8
|
0.15-0.35
|
0.1
|
-
|
-
|
0.15
|
Rest
|
|
5056
|
0.3
|
0.4
|
0.1
|
0.05-0.20
|
4.5-5.6
|
0.05-0.20
|
0.1
|
-
|
-
|
|
0.15
|
Rest
|
5083
|
0.4
|
0.4
|
0.1
|
0.40-1.0
|
4.0-4.9
|
0.05-0.25
|
0.25
|
|
0.15
|
-
|
0.15
|
Rest
|
5754
|
0.4
|
0.4
|
0.1
|
0.5
|
2.6-3.6
|
|
0.3
|
0.2
|
0.15
|
-
|
0.15
|
Rest
|
6061
|
0.4-0.8
|
0.70
|
0.15-0.40
|
|
0.15
|
0.8-1.2
|
0.04-0.35
|
0.25
|
0.15
|
-
|
0.15
|
Rest
|
6063
|
0.2-0.6
|
|
0.35
|
0.1
|
0.1
|
0.45-0.9
|
0.1
|
0.1
|
0.1
|
-
|
0.15
|
Rest
|
|
6082
|
0.7-1.3
|
0.5
|
0.1
|
0.4-1.0
|
0.6-1.2
|
0.25
|
0.2
|
0.1
|
-
|
