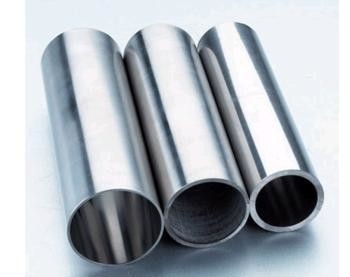

DN150 6 Inch 321 / 317 / 347 / 347H Welding Stainless Steel Pipe Annealing
Stainless steel pipe are light weight and are widely used in the manufacture of mechanical parts and engineering structures. Mainly used in petroleum, chemical, medical, food, light industry
|
Stainless Steel Pipe
|
||||
|
Standard
|
OD(mm)
|
WT(mm)
|
Length(meters)
|
Grade
|
|
ASTM A249,
ASTM A269,
EN 10217-7
|
15.88 to 114.3
|
0.3 to 4.0
|
Up to 18.3 meter
|
1.4301, 1.4306, 1.4404,
AISI 304/304l/316l,
S31803/S32205, etc
|
|
Standard
|
Outside Diameter
|
Thickness
|
Length
|
|
|
ASTM A249
(A1016)
|
<25.4
|
±0.10
|
±10%S
|
OD<50.8+3-0
OD≥50.8+5-0
|
|
≥25.4~<38.1
|
±0.15
|
|||
|
≥38.1~<50.8
|
±0.20
|
|||
|
≥50.8~<63.5
|
±0.25
|
|||
|
≥63.5~<76.2
|
±0.31
|
|||
|
ASTM A269
(A1016)
|
<38.1
|
±0.13
|
OD<12.7±15%
OD≥12.7±10%
|
OD<38.1+3.2-0
OD≥38.1+4.8-0
|
|
≥38.1~<88.9
|
±0.25
|
|||
|
≥88.9~<139.7
|
±0.38
|
|||
|
Chemical Composition
|
Tensile Strength
|
Yield Strength
|
Elongation
|
Hardness
HRB
|
|
Grade 304 Stainless Steel (100% & MPA)
|
||||
|
C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20
|
≥515
|
≥205
|
≥40
|
≤92
|
|
Grade 304L Stainless Steel (100% & MPA)
|
||||
|
C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20
|
≥485
|
≥170
|
≥40
|
≤92
|
|
Grade 316L Stainless Steel (100% & MPA)
|
||||
|
C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18
|
≥485
|
≥170
|
≥40
|
≤95
|
