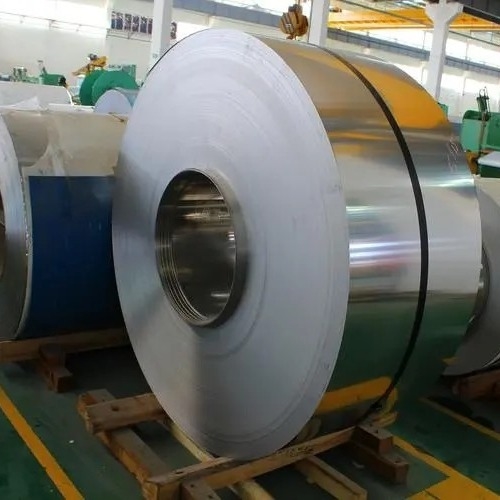

Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L
  • Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L
  • Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L
  • Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L
Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L

Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L

Place of Origin JIANGSU
Brand Name TISCO
Certification SGS ISO ROHS
Model Number 201 304 316L 304L 430 410 439 441 409 940
Product Details
Name:
ASTM AISI 304 316L 2b Fabrication Custom Stainless Steel Stamping Coil Thick 2mm
Steel Grade:
ASTM AISI 304 316L
Surface:
2b Ba
Technique:
Solid Solution Pickling
Application:
Plate Heat Exchangers, Bellows, Household Items
Edge:
Slit Edge,Mill Edge
Highlight:

Stainless Steel Stamping Coil 2mm

,

2b Stainless Steel Stamping Coil

,

Bellows Stainless Steel Sheet Coil

Payment & Shipping Terms
Minimum Order Quantity
1MT
Price
Negotiable
Packaging Details
Exporting package/wooden box package/Or per customers’ requirement
Delivery Time
3~15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
2000MT/Month
Product Description


Etching method
The etching process, which uses a screen-printed acid-resistant protective film on the surface of stainless steel, is then etched with a ferrous chloride solution to form an artistic pattern.
Colour spraying
The colour spraying method is to spray colour particles after screen printing to form a pear skin-like surface to form an artistic pattern.
Process
The process of spray colour art processing method of stainless steel products is: stainless steel products → screen printing → etching → alkali treatment → screen printing → oxidation colouring → alkali treatment → finished products.
The process of etching art processing method of stainless steel products is: stainless steel products → silk-screening → etching → alkali treatment → oxidation colouring → finished products.
The chemical colouring method of stainless steel, without the use of pigments and dyes, but the stainless steel immersed in a concentrated solution of chromium sulphate with heating, for chemical colouring, which is characterised by good food resistance. The inks used in this processing method have to be very acid resistant and generally use UV vulcanising inks with special properties that are compatible with the treatment process.

    Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L 0
      Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L 1



1.Commordity:Stainless Steel Coils
2. Thickness:0.3mm~5.0mm
3. Width:6mm~500mm, 1219mm, 1500mm
4. Surface:Shiny surface, 2B, 2R, BA
5. Standard:ASTM A240
6 Finishing:Cold rolled + annealed
7. Materials:304 316 409 430 904L 2205 2507
8. Material origin:TISCO, POSCO, LISCO, ZPSS, Bao steel, Krupp etc
9. Application:Flexible metal hose, air duct, Gasket, tower packing, power cable & oil well, washer, packing, heat exchanger, conveyor belting
10. Coil ID:300MM, 400mm, 500mm as per customers' request
11. Coil weight:as per client's requirement.
12. Delivery timeBe ready for shipment within 15~20 days upon receipt PO
12. Package:Plywood pallets
13. Certificate:ISO, BV, SGS, Mill test certificate
14. Product quality:Good & prime



Chemical Composition


GRADE
400 SERIES, MAX, %
C
Mn
P
S
Si
Cr
Ni
Mo
N
Others
405
0.08
1.0
0.04
0.03
1.0
11.5-14.5
0.6
-
-
Al 0.10-0.30
409L
0.03
1.0
0.04
0.02
1.0
10.5-11.7
0.5
-
0.03
Ti 63(C+N) min,
0.50 max; Cb 0.17
410
0.08-0.15
1.0
0.04
0.03
1.0
11.5-13.5
0.75
-
-
-
410S
0.08
1.0
0.035
0.03
1.0
11.5-13.5
0.6
-
-
-
420J1
0.16-0.25
1.0
0.04
0.03
1.0
12.0-14.0
-
-
-
-
420J2
0.26-0.4
1.0
0.04
0.03
1.0
12.0-14.0
-
-
-
-
430
0.12
1.0
0.04
0.03
1.0
16.0-18.0
0.75
-
-
-
434
0.12
1.0
0.04
0.03
1.0
16.0-18.0
-
0.75-1.25
-
-
436L
0.25
1.0
0.04
0.03
1.0
16.0-19.0
-
0.75-1.25
-
Cb 53C min,0.80 max
439
0.03
1.0
0.04
0.03
1.0
17.0-19.0
0.5
-
0.03
Ti [0.20+4(C+N)]
min, 1.10 max; Al 0.15
443
0.025
1.0
0.04
0.03
1.0
20.0-23.0
0.5
-
0.025
(Ti+Cb)83(C+N) min,
0.80 max. Cu: 0.3-0.8
444
0.025
1.0
0.04
0.03
1.0
17.5-19.5
1
1.75-2.5

(Ti+Cb)[0.20+4(C+N)]
min,0.80 max; Cu≤0.035
447
0.01
0.3
0.025
0.02
0.2
28.0-30.0
0.15
3.5-4.2
0.02
(C+N) 0.025, Cu≤0.15



About Us:

Jiangsu Lianzhong Metal Products (Group) Co., Ltd  provides customers with different specifications and materials for stainless with 10 years' experience.Special Purpose with high quality, fast delivery, competitive price and excellent exprience of after-sale service.We have keep highly appreciated cooperation with purchasers from many countries .If you are interested in our products, please feel free to contact me any time! Welcome to hear from your inquiry!
 Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L 2
Packaging way :
standard seaworthy export packing,other types of packing can be customized as every requirement.

Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L 3

Product processing:

Thick 2mm 2b Stainless Steel Stamping Coil ASTM AISI 304 316L 4


FAQ:

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe, and our company also is a very professional a trade company for steel
products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
